2.3.1.2. gtm1.site2¶
Navigate to: DNS ›› GSLB : Servers : Server List https://gtm1.site2.example.com/tmui/Control/jspmap/tmui/globallb/server/list.jsp

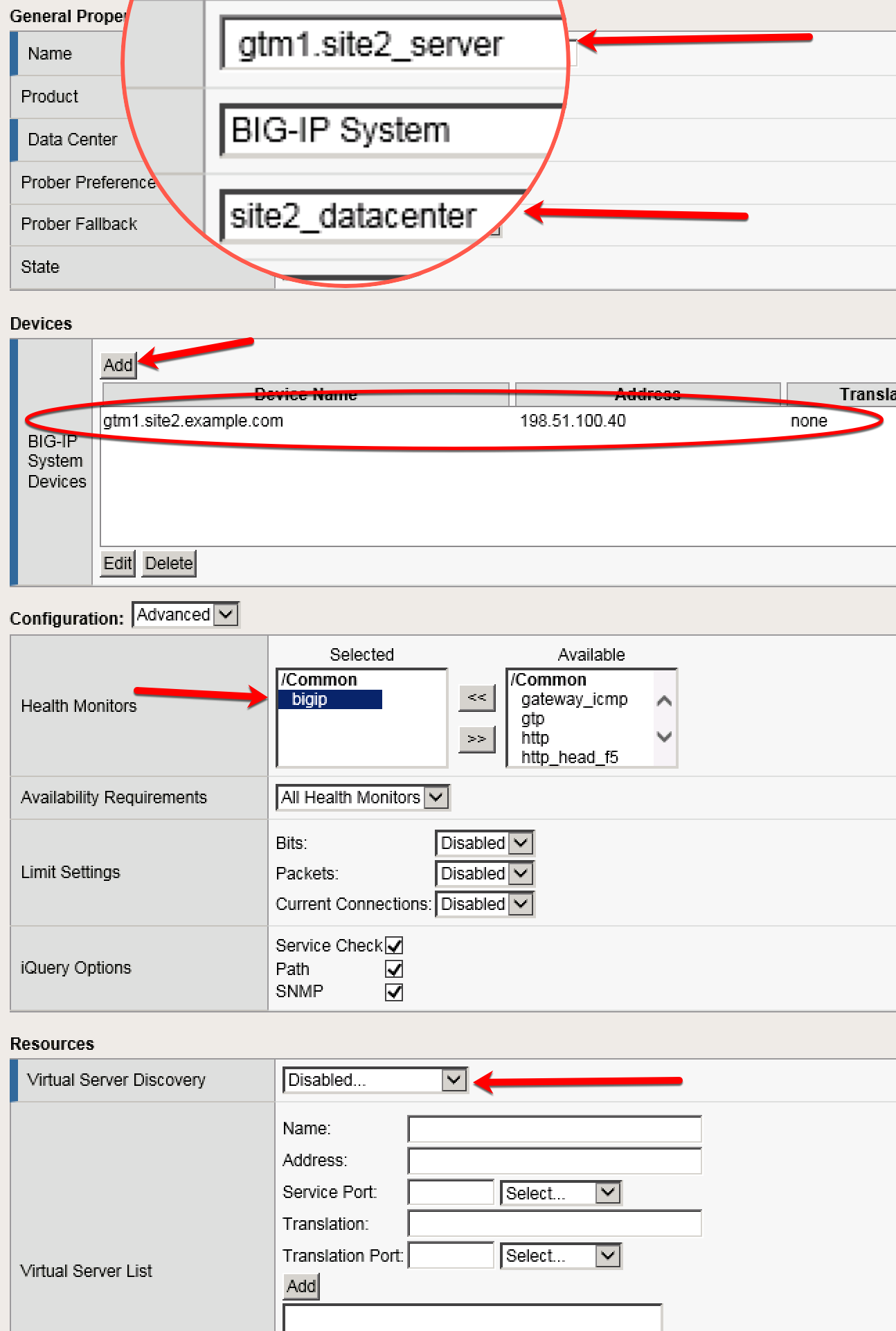

Create a Server Object as defined in the table below:
| Setting | Value |
|---|---|
| Name | gtm1.site2_server |
| Data Center | site2_datacenter |
| Devices Add: | gtm1.site2.example.com : 198.51.100.39 |
| Health Monitors | bigip |
| Virtual Server Discovery | Enabled |
TMSH command for only gtm1.site1: .. code-block:: cli
tmsh create gtm server gtm1.site2_server datacenter site2_datacenter devices add { gtm1.site2.example.com { addresses add { 198.51.100.39 } } } monitor bigip product bigip
