2.3.6. Auto Discover

Auto discover can be helpful, but after initial setup it’s recomended to disable it.

Navigate to DNS ›› GSLB : Servers : Server List ›› Links : site1_ha-pair

https://gtm1.site1.example.com/tmui/Control/jspmap/tmui/globallb/server/links.jsp?&leaf_name=site1_ha-pair&name=%2FCommon%2Fsite1_ha-pair

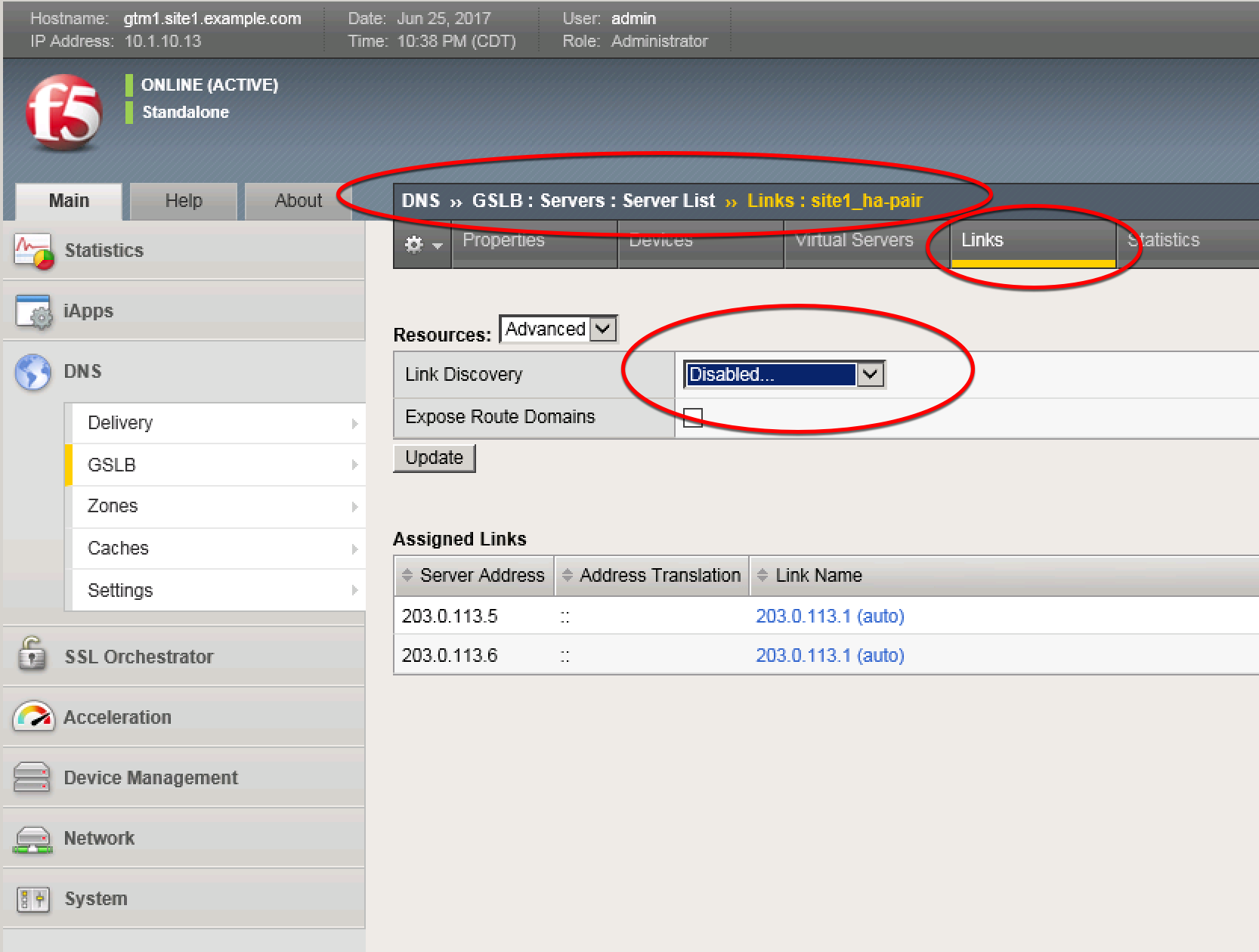

Disable Link Auto Discovery

../../_images/dns_gslb_datacenter_server_link_discovery.png

Navigate to DNS ›› GSLB : Servers : Server List ›› Virtual Servers : site1_ha-pair

https://gtm1.site1.example.com/tmui/Control/jspmap/xsl/gtm_server/virtual_servers?&leaf_name=site1_ha-pair&name=%2FCommon%2Fsite1_ha-pair

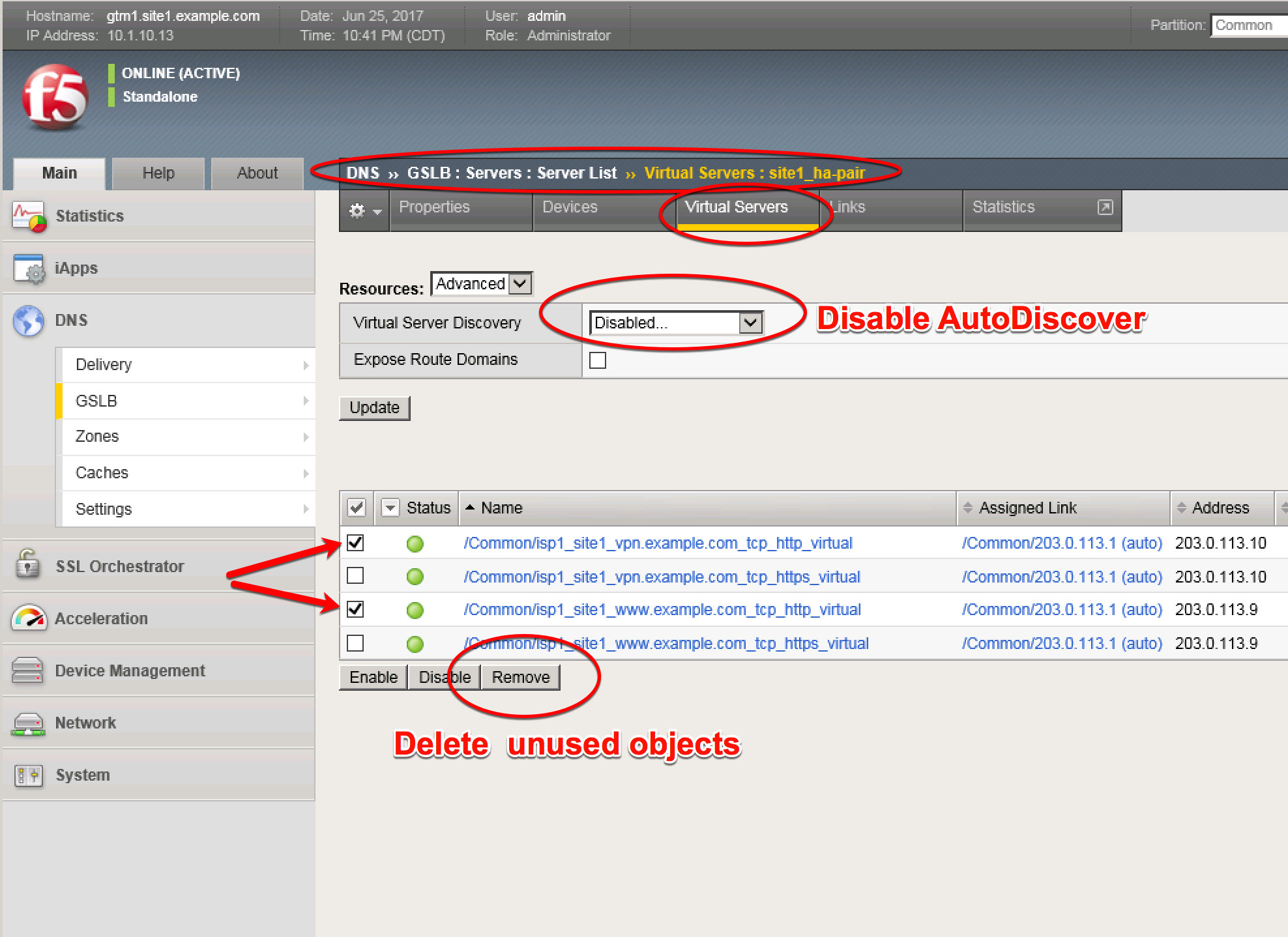

Disable Virtual Auto Discover and delete unused objects

../../_images/dns_gslb_datacenter_server_virtual_discovery.png

Note

Repeat the above operations for site2_ha-pair

https://gtm1.site1.example.com/tmui/Control/jspmap/tmui/globallb/server/links.jsp?&leaf_name=site1_ha-pair&name=%2FCommon%2Fsite1_ha-pair

https://gtm1.site1.example.com/tmui/Control/jspmap/xsl/gtm_server/virtual_servers?&leaf_name=site2_ha-pair&name=%2FCommon%2Fsite2_ha-pair

tmsh modify gtm server site1_ha-pair link-discovery disabled virtual-server-discovery disabled
tmsh modify gtm server site2_ha-pair link-discovery disabled virtual-server-discovery disabled
tmsh modify gtm server site1_ha-pair virtual-servers delete { /Common/isp1_site1_vpn.example.com_tcp_http_virtual /Common/isp1_site1_vpn.example.com_tcp_https_virtual /Common/isp1_site1_www.example.com_tcp_http_virtual }
tmsh modify gtm server site2_ha-pair virtual-servers delete { /Common/isp2_site2_vpn.example.com_tcp_http_virtual /Common/isp2_site2_vpn.example.com_tcp_https_virtual /Common/isp2_site2_www.example.com_tcp_http_virtual }
