2.4. Pools¶

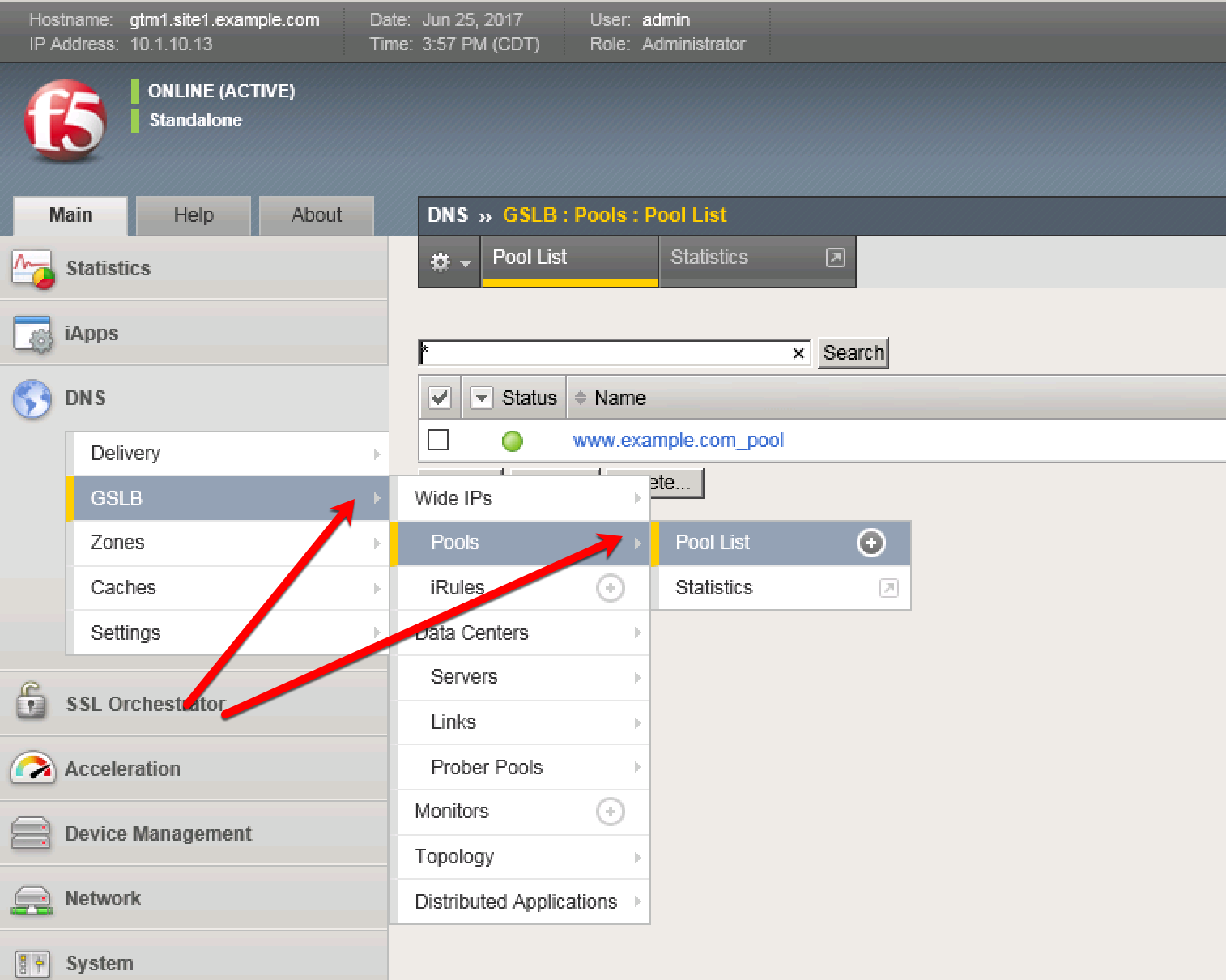

Navigate to: DNS ›› GSLB : Pools : Pool List
https://gtm1.site1.example.com/tmui/Control/jspmap/tmui/globallb/pool/list.jsp?

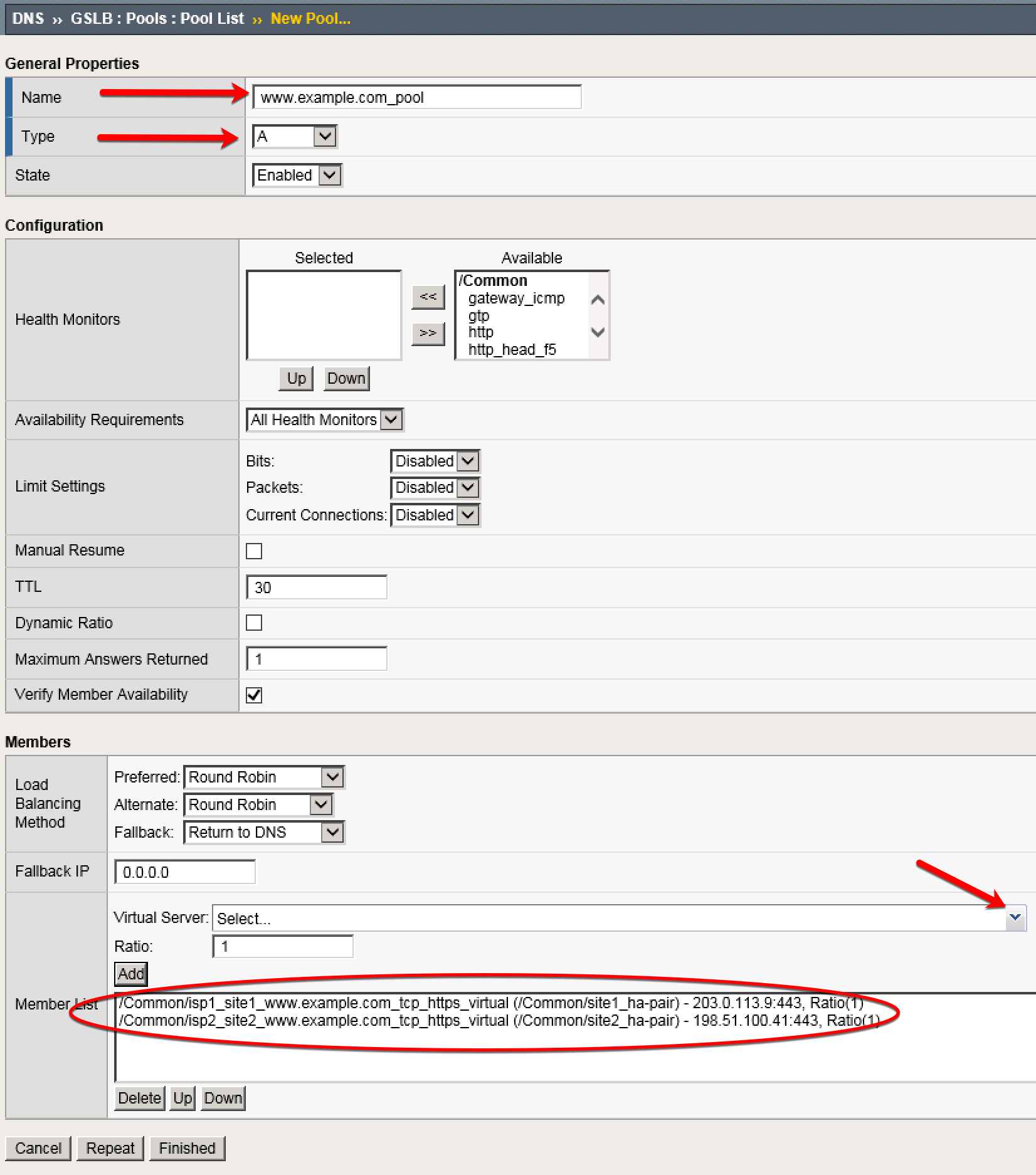

Create a GTM pool of LTM Virtuals according to the following table:
| Setting | Value |
|---|---|
| Name | www.example.com_pool |
| Type | A |
| member | isp1_site1_www.example.com_tcp_https_virtual |
| member | isp2_site2_www.example.com_tcp_https_virtual |
TMSH command to run on only gtm1.site1:
tmsh create gtm pool a www.example.com_pool { members add { site1_ha-pair:/Common/isp1_site1_www.example.com_tcp_https_virtual { member-order 0 } site2_ha-pair:/Common/isp2_site2_www.example.com_tcp_https_virtual { member-order 1 } } }
