2.3.1.1. gtm1.site1¶
Navigate to: DNS ›› GSLB : Servers : Server List https://gtm1.site1.example.com/tmui/Control/jspmap/tmui/globallb/server/list.jsp

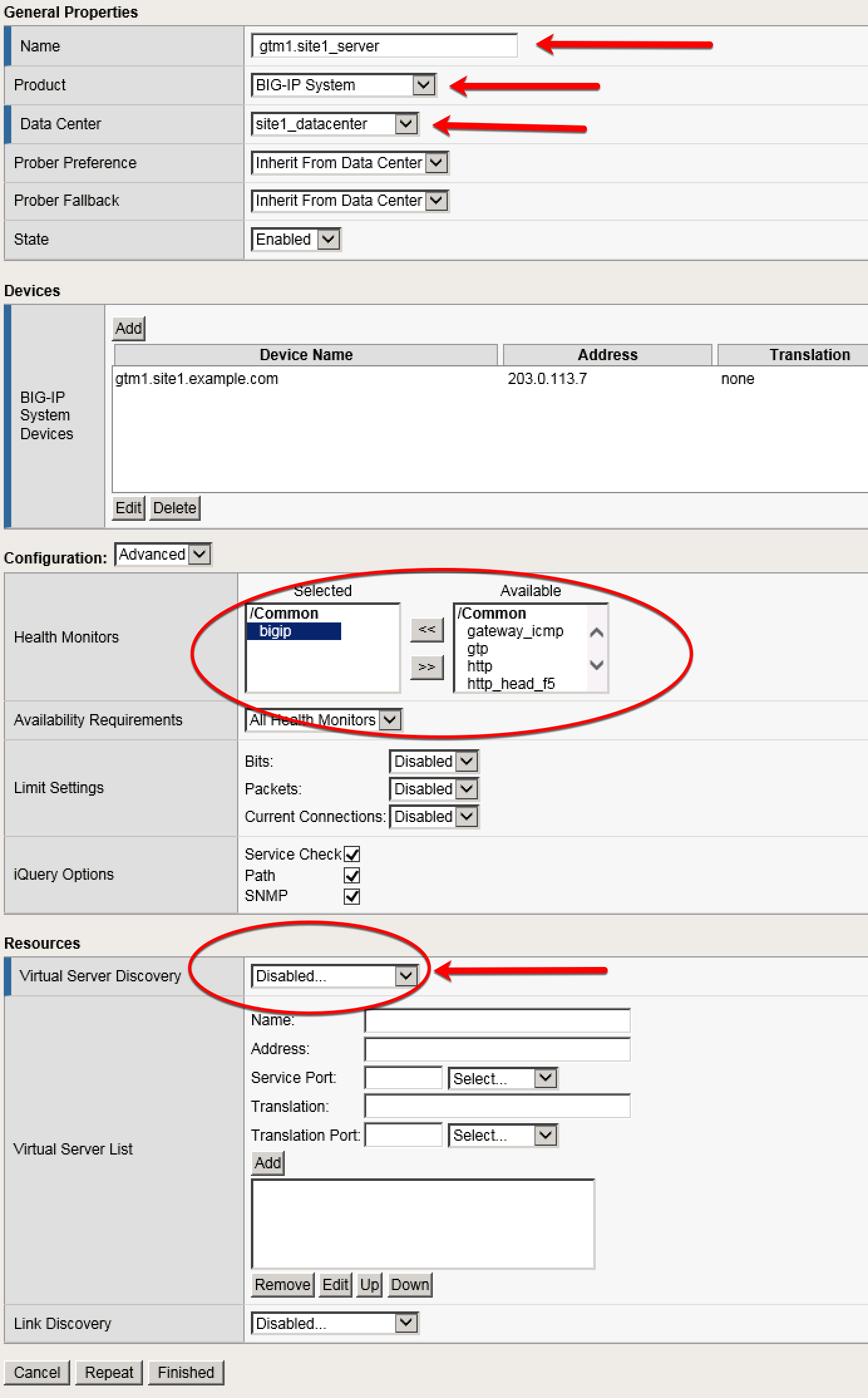

Create a Server Object as defined in the table below:
| Setting | Value |
|---|---|
| Name | gtm1.site1_server |
| Data Center | site1_datacenter |
| Devices Add: | gtm1.site1.example.com : 203.0.113.7 |
| Health Monitors | bigip |
| Virtual Server Discovery | Disabled |
TMSH command for only site1.gtm1:
tmsh create gtm server gtm1.site1_server datacenter site1_datacenter devices add { gtm1.site1.example.com { addresses add { 203.0.113.7 } } } monitor bigip product bigip
